Rolling Steel Doors

CHI 6200

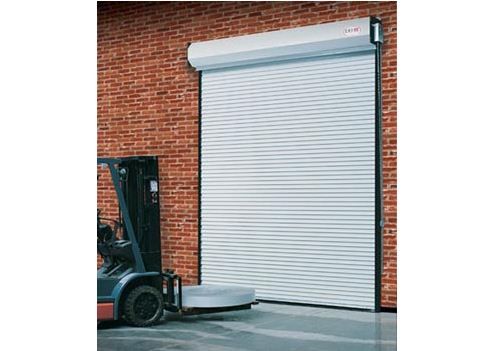

  • CHI 6200 Garage Door

Medium duty service door

Conceived and designed as a moderately priced dock and material handling solution, the 6200 Series service garage doors feature full-sized, 24-gauge slats and incorporate structural steel guides, full-sized head plates, structural hood, self-aligning drive bearings, and quick-release guides. The commercial design features accrue into a true feature-packed, value-added package. The steel components of this door are 100% recyclable post-consumer, making them the right choice for green sustainable buildings and LEED projects.

  • Features

    • Slat Profile: Standard sized commercial 2-3/4” interlocking flat slats in hot-dipped galvanized 24-gauge steel
    • Operation: Manual push-up, chain hoist (standard) or motor operation
    • Max Size - 12' x 14'4" (contact customer service for larger sizes)
    • Colors: Pre-painted in gray or white or optional stock RAL powder-coat option in 188 colors
    • Half-hexagonal formed hoods deliver superior structural rigidity and aesthetic appeal
    • Value is enhanced by building realtime performance expectations into time proven, reduced cost design
    • Options and accessories available

    Curtain

    Slat profile

    flat_slat_images Flat Slat (FS) cover 2-1/2” high by 3/4” deep


    Endlocks & Windlocks

    • Malleable, zinc-placted cast iron endlocks and windlocks maintain curtain alignment and increase windload capacity. Galvanized malleable cast endlocks are fastened to every other slat. Windlocks are added as dictated by door size & windload requirement.
    • Windload: Designed to withstand a minimum of 20 lbs psf (per sq feet) of windload to an amount that prevents curtain per square foot of windload deflection to prevent buckling or being blown out of the guides.

    endlock

    windlock



    Gauge

    24 gauge interlocking galvanized steel

    Finish

    • White or Gray
    • Optional: Stock RAL powder-coat option in 188 colors
    • Slats are hot-dipped galvanized per ASTM A653 A with baked on epoxy primer and polyester finish coat available

    Vision panels

    5" x 1-1/8"

    Mounting options

    Face Mount (E or Z) or Jamb Mount Mount to Steel, Wood or Masonry Jambs

    Guides

    Fabricated from three (minimum 1/8” structural steel angles bolted together to form guide channel. Guide angles include curtain stops & flared guides Hot-dipped or cold sprayed galvanized guides (optional)

    Headplates

    Fabricated from minimum 1/8” steel plate. Drive side of barrel to be provided with precision sealed ball bearing in cast iron housing

    Operation

    Manual Push-up, Chain-hoist (standard)

    Springs

    • Spring tension assembly within barrel by precision ball bearings.
    • Assembly designed for 10,000 cycle life springs (Standard). Higher cycles optional

    Motor operation

    • Rolling Doors are also available with Motor operation.
    • Refer to the motor operator area chart to select operator type based on dimensions and gauge
    • Choose between wall mount or front of headplate mount. Use the charts to determine headroom, sideroom and backroom clearance requirements.
    counterbalance

    Optional accessories

    Hood

    CHI hood Fabricated from minimum 24-gauge galvanized steel sheet shaped to fit within the headplates. Intermediate hood support(s) furnished as required.



    Locking

    CHI slide lock Manual push-up doors furnished with interior slide bolt locks with padlock provision standard.

    Chain hoist doors operated doors furnished with chain hoist keeper suitable for padlocking.

    To learn more about fire safety standards, please click here.

    Features

    Features

    • Slat Profile: Standard sized commercial 2-3/4” interlocking flat slats in hot-dipped galvanized 24-gauge steel
    • Operation: Manual push-up, chain hoist (standard) or motor operation
    • Max Size - 12' x 14'4" (contact customer service for larger sizes)
    • Colors: Pre-painted in gray or white or optional stock RAL powder-coat option in 188 colors
    • Half-hexagonal formed hoods deliver superior structural rigidity and aesthetic appeal
    • Value is enhanced by building realtime performance expectations into time proven, reduced cost design
    • Options and accessories available

    Curtain

    Curtain

    Slat profile

    flat_slat_images Flat Slat (FS) cover 2-1/2” high by 3/4” deep


    Endlocks & Windlocks

    • Malleable, zinc-placted cast iron endlocks and windlocks maintain curtain alignment and increase windload capacity. Galvanized malleable cast endlocks are fastened to every other slat. Windlocks are added as dictated by door size & windload requirement.
    • Windload: Designed to withstand a minimum of 20 lbs psf (per sq feet) of windload to an amount that prevents curtain per square foot of windload deflection to prevent buckling or being blown out of the guides.

    endlock

    windlock



    Gauge

    24 gauge interlocking galvanized steel

    Finish

    • White or Gray
    • Optional: Stock RAL powder-coat option in 188 colors
    • Slats are hot-dipped galvanized per ASTM A653 A with baked on epoxy primer and polyester finish coat available

    Vision panels

    5" x 1-1/8"

    Mounting options

    Mounting options

    Face Mount (E or Z) or Jamb Mount Mount to Steel, Wood or Masonry Jambs

    Guides

    Fabricated from three (minimum 1/8” structural steel angles bolted together to form guide channel. Guide angles include curtain stops & flared guides Hot-dipped or cold sprayed galvanized guides (optional)

    Headplates

    Fabricated from minimum 1/8” steel plate. Drive side of barrel to be provided with precision sealed ball bearing in cast iron housing

    Operation

    Operation

    Manual Push-up, Chain-hoist (standard)

    Springs

    • Spring tension assembly within barrel by precision ball bearings.
    • Assembly designed for 10,000 cycle life springs (Standard). Higher cycles optional

    Motor operation

    • Rolling Doors are also available with Motor operation.
    • Refer to the motor operator area chart to select operator type based on dimensions and gauge
    • Choose between wall mount or front of headplate mount. Use the charts to determine headroom, sideroom and backroom clearance requirements.
    counterbalance

    Optional Acc.

    Optional accessories

    Hood

    CHI hood Fabricated from minimum 24-gauge galvanized steel sheet shaped to fit within the headplates. Intermediate hood support(s) furnished as required.



    Locking

    CHI slide lock Manual push-up doors furnished with interior slide bolt locks with padlock provision standard.

    Chain hoist doors operated doors furnished with chain hoist keeper suitable for padlocking.

    Fire safety standards

    To learn more about fire safety standards, please click here.
